Esprit Convertibles

Esprit Convertible

These are the unofficial Esprit Convertible that are still on the roads today. Only seen on the Giugiaro Esprit, two companies chopped the roof and rear hatch and produced a hood and new hatch. This conversion doesn't look cheap with lots of bodywork changes.

Two companies changed Esprit into beautiful roadster :

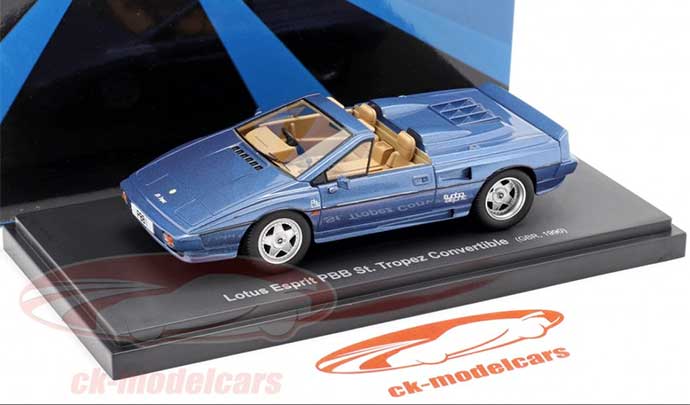

1- PBB (or Paul Baron Bailey), an english manufacturer, made some S2, S3 & Turbo Esprit convertibles in the 80's (the first was pearlescent white). They are called "SAINT TROPEZ". (See blue Esprit below)

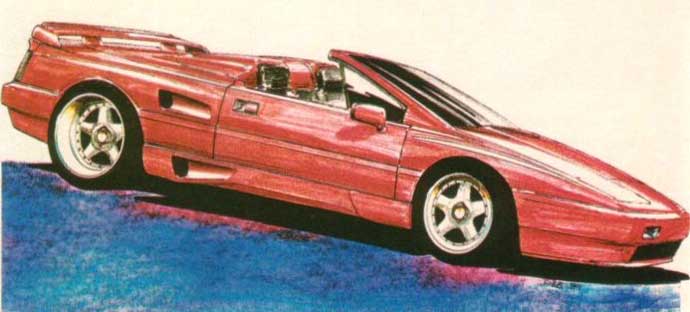

We believe these are sketches from PBB for converting the stevens Esprit to a convertible. Never done, but looks interesting.

2- AUTOHAUS KOLLINGER GMBH, in Hamburg (Germany), made convertibles too from S2, S3 & Turbo Esprit called ESPRIT ROADSTER (see white version further below)

Update
Info from Mark Irwin, Feb 09
In the early 90s I bought all the moulds, drawings and rights for the st tropez conversion from Paul Bailey (PBB design) near Bristol , and marketed it along with a Rover V8 conversion and other esprit services under the business name of Esprit Developments based in Southend on sea Essex.

The kit was further developed from Paul's original design with a one piece rear upper body section that made use of the cars original waist line,turbo tail reproduction dummy turbo sills and an adapted s4 rear wing. This conversion along with the V8 was ideal for fire damaged esprits of which there were many (and still are today, look at Douglas valley breakers) due to the fact that lotus seemed to use fuel degradable fuel hoses!

Both kits resurrected many esprits that would otherwise have been scrapped. As i said, the convertable kits main component was the one piece rear upper body section which was used to replace the entire original bodywork from the firewall back and from the waist line up.Strengthening was added to the sill from door pillar to the area beneath the fuel tank, then covered by turbo style sills. Windscreen surround was also re-enforced as was the area rear of the chassis to the tail.the result was very strong with virtually no scuttle shake. The roof had foldable pillars and was designed so it could be stowed easily in the rear of the engine compartment.

The V8 conversion completely transformed the car, better torque, better sound, relieable and comparatively economical with no noticeable weight gain, this was because the V8 was stripped of all the ancillaries that it came with, a remote and compact water pump was mounted below the sump along with a smaller sized alternator, lightweight exhaust manifolds were connected to the stock back box. A purpose made gearbox input shaft was used along with a cast aluminium adaptor plate, and no chassis or firewall cutting. could go on, there were a lot of components, too many to list here.

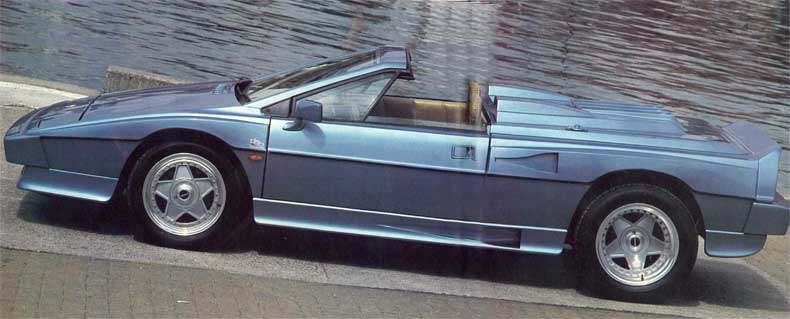

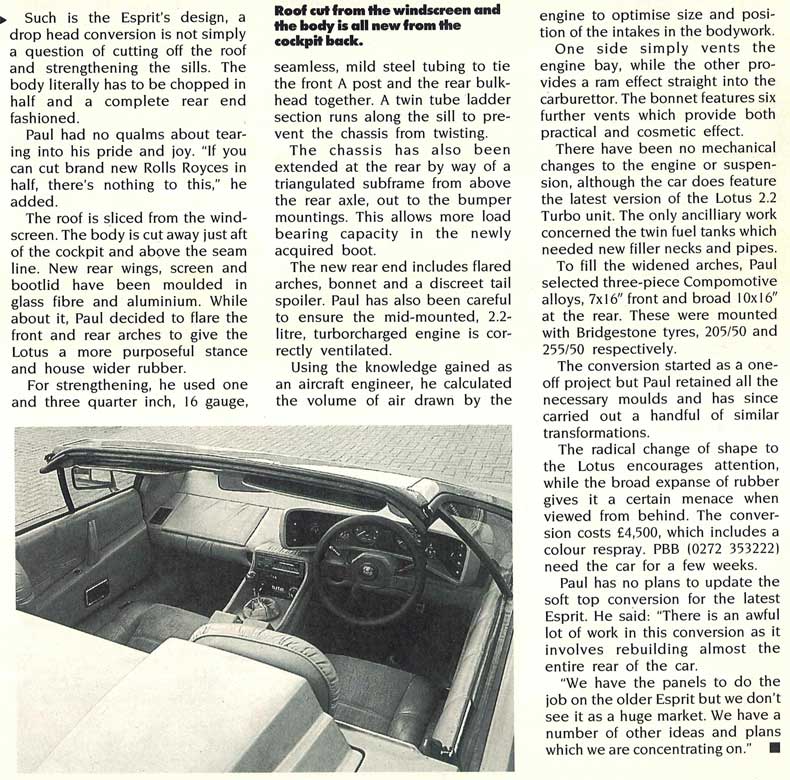

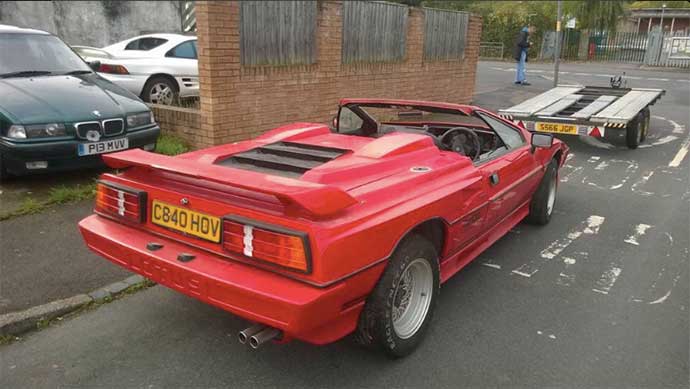

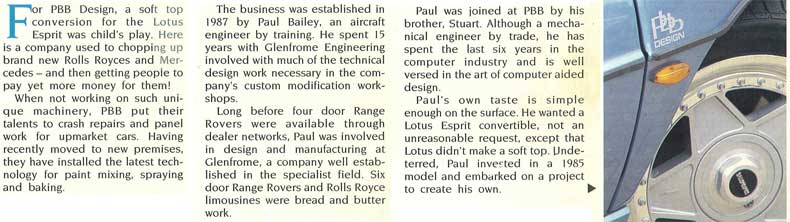

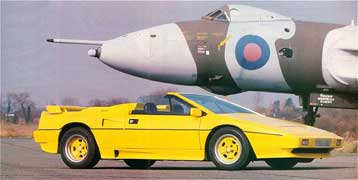

To your photos, the yellow car was my personal vehicle for quite a while and was featured in the Club lotus magazine and Top car magazine which these photos come from,they were taken at Southend airport. It had the Rover V8 installed, I sold it in about 1996 to a German who took it back to Germany. The red car may also have been one of mine (but with a private Plate} The white car was Paul bailey's first conversion and the blue one his second. Due to the passage of time etc, i no longer have any drawings or photos, but however, I do still have all the moulds and jigs for the st tropez and V8 conversion in storage.

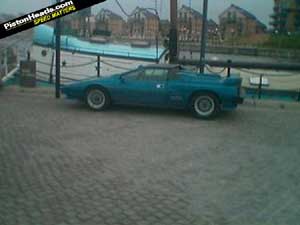

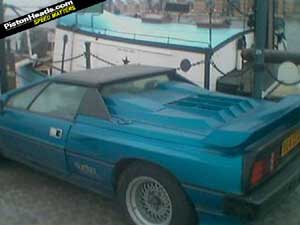

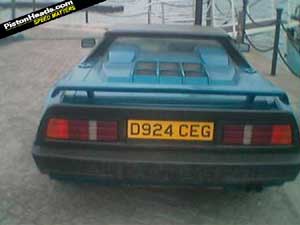

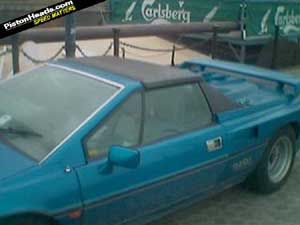

The above pictures were supplied by Pistonheads.com

JPS Convertible

This picture was sent in by a German GT3 owner. Found on German Ebay, its some sort of collecters card. Not much more is known about whether the JPS was original or not, personally I doubt it.

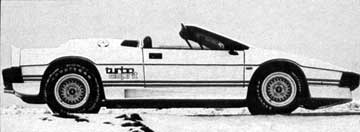

Esprit Beheaded!

Wind in the hair motoring is all very well, but when the wind is blowing at 130mph it can be just a trifle unpleasant. It hasn't daunted the purchasers of drop-head Jaguars and Porschess though, and it certainly wouldn't put us off the latest creation of the Hamburg coachbuilding company, Autohaus Kollinger. In fact it wouldn't be going too far to say that their latest creation is the most desirable open supercar of them all. . .

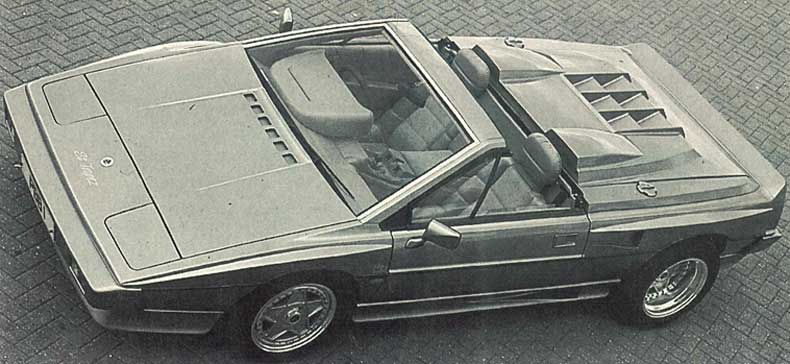

Starting with a Lotus Esprit Turbo, Kollinger have completely redesigned the section to the rear of the cockpit. In place of the fastback roofline and rear window there is now an asymmetric engine cover with individual head fairings and a large air intake on the righ hand side, plus a removeable centre section to give acces to the 210bhp four cylinder engine. In addition to the rear lip spoiler there's also a slight lip along the trailing edge of the windscreen surround in order to deflect the wind over the cockpit. It'll presumably do the same to raindrops when one is travelling at speed, though quite what you're meant to do when the car is stationary one can only speculate, since like Bertone's Athon show car of 1980 there's no provision for a hood.

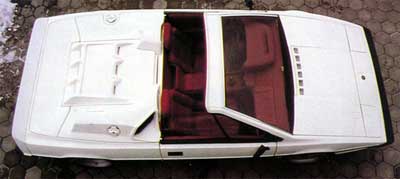

KOLLINGER Convertible Giugiaros

from the website of Swiss Lotus www.lotusteam.ch which they apparantly call Kollinger.

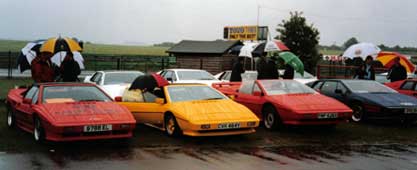

Donington 1998

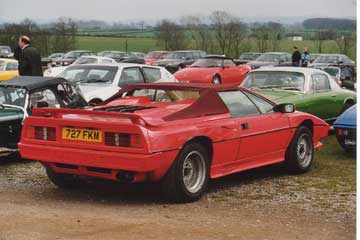

These pictures were taken at the Club Lotus Festival at Donington in 1998 by a German LEW user.

Lotus Esprit Turbo cabrio Prototyp - absolute Rarität
Karlsruhe, Deutschland, February 2007

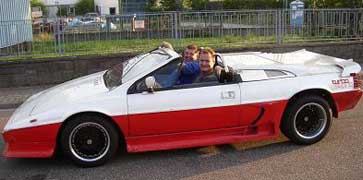

This Esprit Cabrio was spotted on German Ebay by a LEW user. Supposedly a rare prototype esprit convertible. This is the translated text that accompanies the advert:

The car is a prototype of the Lotus ESPRIT "St. Tropez" built in small series From this small series - there only exist approx.. 40 cars world-wide. The car, as it looks now (with the away-hinged Cabrio roof, the spoilers, the magnesium rims and the 43,700 km -not miles) is unique. It belongs however into affectionate collecting hands and not into the hands of a young speed freaks. The car has approx. 300-Turbo HP, inside leather, sound system, hardtop- away-hinged (not removable) Cabrio roof... The sound is ingenious... Now everything was exchanged, headlight, brake assembly, chassis, electronics, elbow union, radiator, leather equipment, magnesium running rims, Lotus emblems... etc.... The lacquer finish of the vehicle was not renewed yet, thus you can paint it in any colour you like..

From Castle Combe about 20 years ago
Taken by Ian May

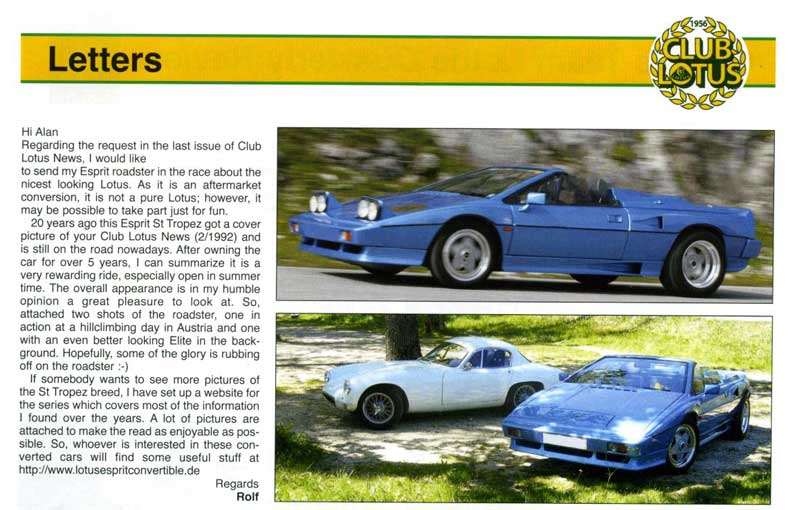

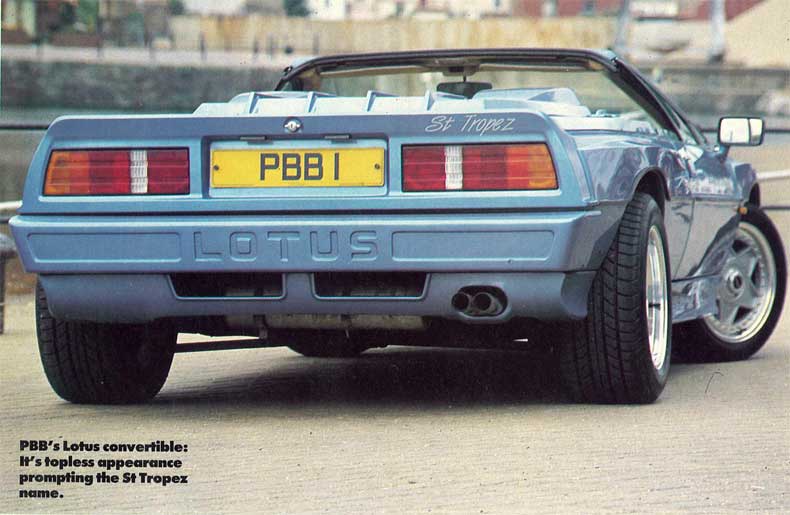

Club Lotus Magazine from 1992

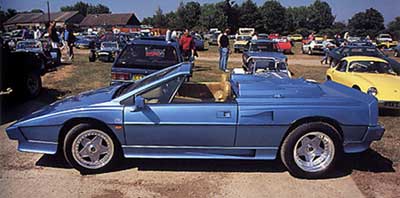

From Castle Combe about 15 years ago
Taken by Andy

I recently found Lotus Esprit World and a feature on the PBB Design Lotus Esprit St Tropez. Among my collection of car photos I have this picture taken at Castle Combe in the mid-90s: it seems to be the same blue car and I thought it may be of interest...

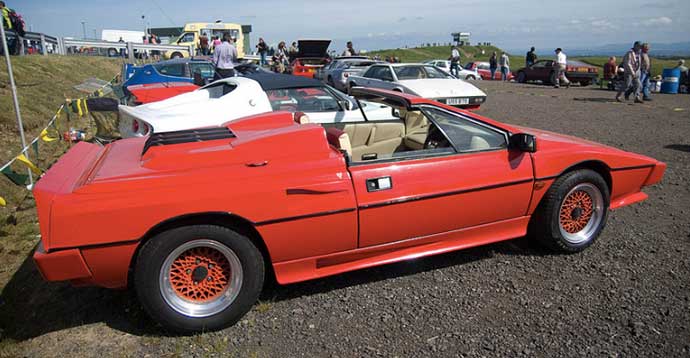

This Esprit Cabriolet was displayed at the Jim Clark Remembrance weekend at Knockhill in 2008.

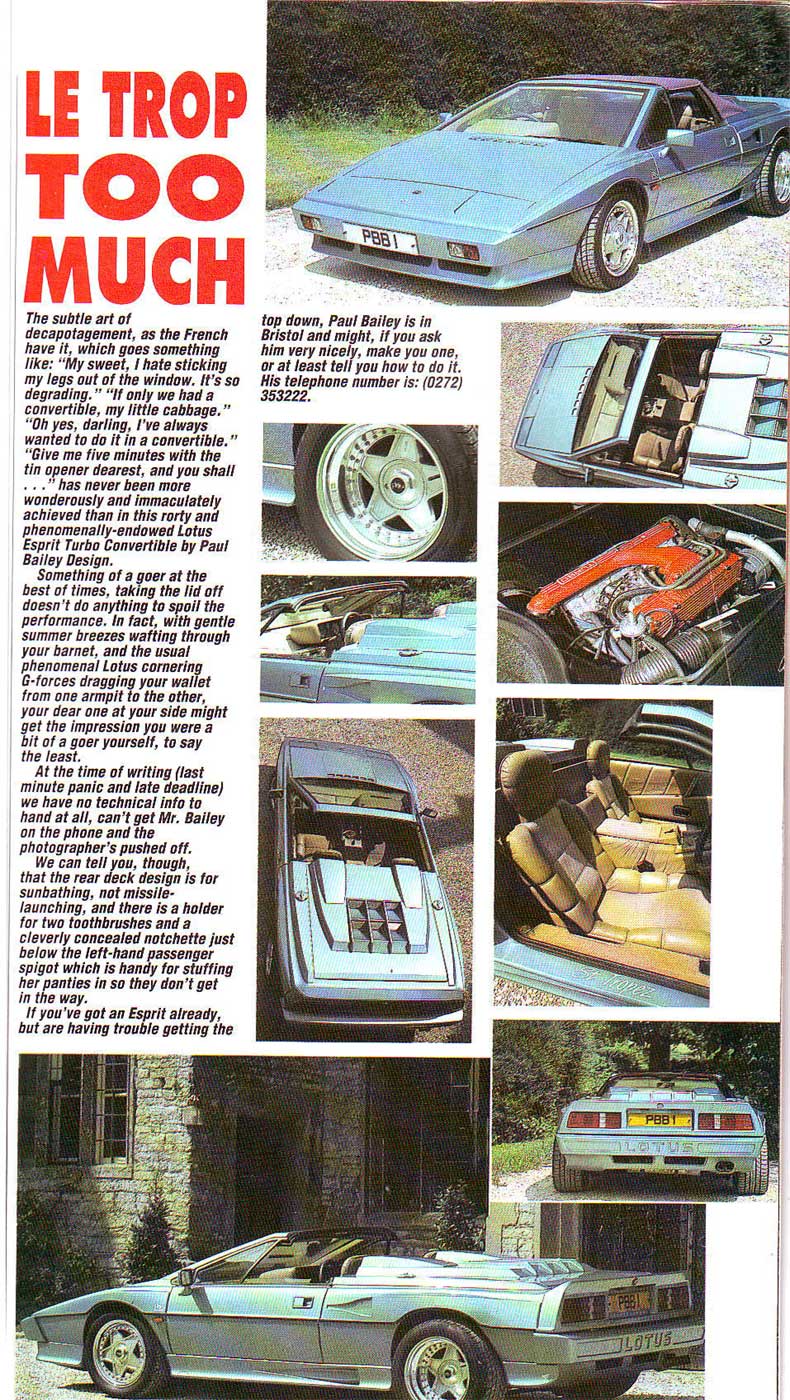

From 'Men Only' Magazine Vol 57, Number 9 from 1992

If you have any further information on this Esprit. Feel free to e-mail so I can add it to this page. kato@lotusespritworld.com.
